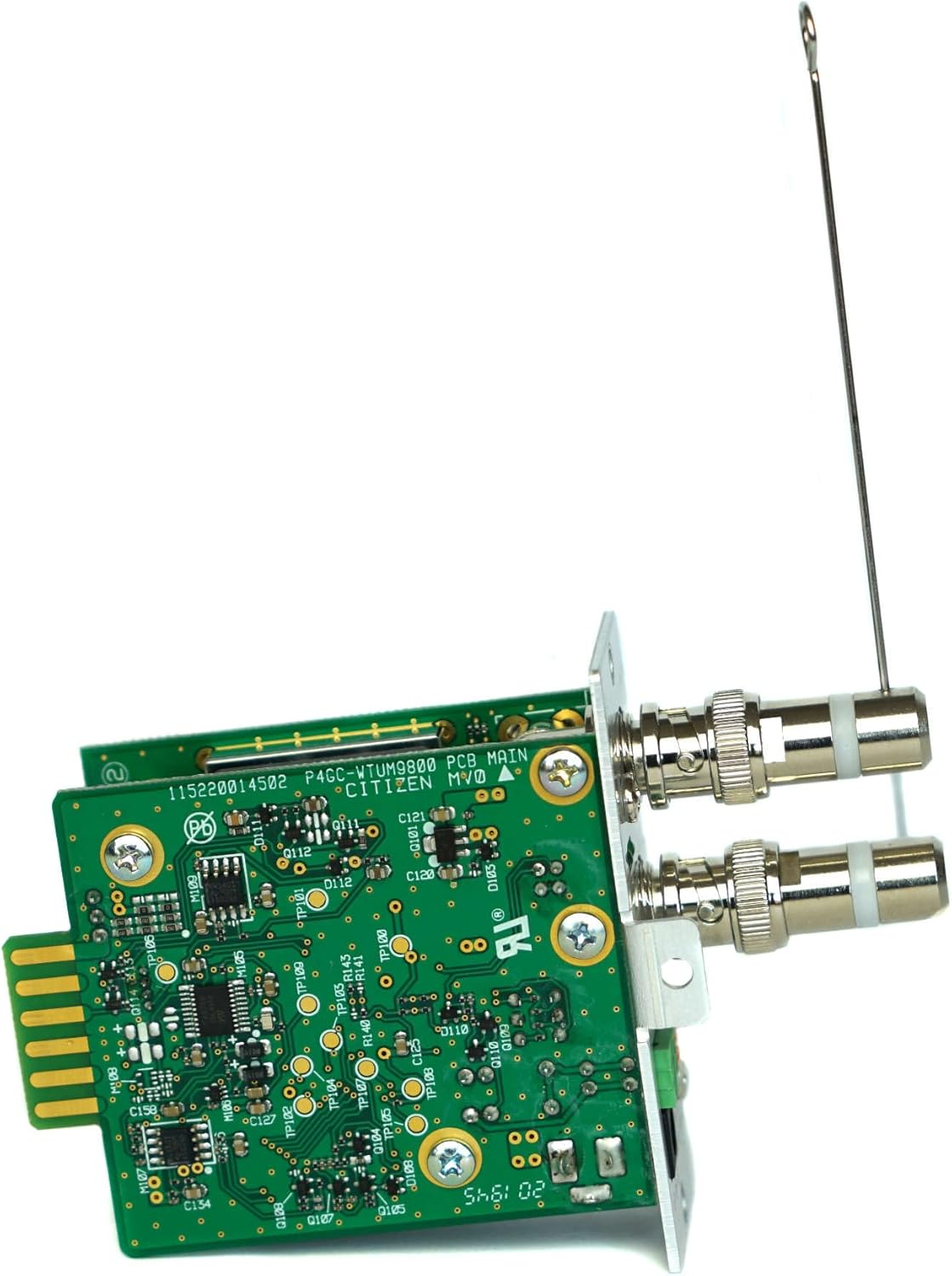

TOA Electronics WTU-M9800-AM Wireless Tuner Module; 5000 Series Compatible; 900-Series Input Modules; M-Band; 16 Selectable Channels; Space Diversity Receiver; Compact Lightweight Design

TOA Electronics WTU-M9800-AM Wireless Tuner Module; 5000 Series Compatible; 900-Series Input Modules; M-Band (506–538 MHz); 16 Selectable Channels; Space Diversity Receiver; Compact Lightweight DesignThe TWTU-M9800-AM Wireless Tuner Module provides a professional, integrated wireless solution for TOA Electronics mixers and mixer/amplifiers. Operating in the M-band range (506–538 MHz) with up to 16 channels, this compact module ensures reliable audio performance using a double super-heterodyne, space diversity design. Its compatibility with TOA 5000 series transmitters, along with flexible power options and support for optional antennas, makes it perfect for applications in schools, houses of worship, corporate facilities, and event venues.Key FeaturesIntegrated wireless tuner module for 900-Series input slotsSupports 16 selectable channels in the 506–538 MHz UHF M-BandStable, interference-resistant signal with sophisticated space diversityPowered internally from mixer slot or via external 12–24V DC sourceLightweight, compact design for simple installation and integrationSpecificationsModel/MPN: WTU-M9800-AM (WTU-M9800-AMWM1)Frequency Range: 506–538 MHz (M-Band)Channels: 16 selectableReceiving System: Double super-heterodyneDiversity: Space diversity systemFrequency Response: 100 – 12,000 Hz (±3 dB)S/N Ratio: >80 dBPower: 24 V DC internal, 12–24 V DC externalDimensions: 1.38" × 3.07" × 3.57"Weight: 0.21 lb (92 g)

• Integrated Wireless Receiver Module – Designed for TOA mixers and mixer/amplifiers that support 900-Series input modules.
• M-Band Frequency Range (506–538 MHz) – Operates with up to 16 selectable channels for flexible wireless configuration.
• Space Diversity System – Delivers stable signal reception with minimized dropouts and interference.
• Compact and Lightweight – Small form factor (1.38" × 3.07" × 3.57") and only 0.21 lb for easy installation.
• Flexible Power Options – Powered directly from the host module slot (up to 2 per mixer) or an optional AD-246 power supply; phantom power support for YW-4500Q remote antennas.
